Sewer and water line repair in Northwest Calgary

The northwest covers almost the full range in one quadrant. The older river communities carry clay and cast iron under mature tree cover; the 1960s and 1970s university-adjacent areas sit in between; and the communities along the northern edge are recent enough that the buried line is plastic and the honest answer to a blockage there is usually a cleaning.

Move north through this quadrant and you move forward through the history of buried pipe in roughly chronological order. It starts at the river with pre-war communities on the original grid, passes through a wide band of post-war and university-era development, and ends on the northern edge in communities that are newer than most of the trucks working on them. Very few cities lay their own timeline out that tidily, and it makes the northwest the easiest quadrant in Calgary to reason about at the two ends — and the hardest in the middle.

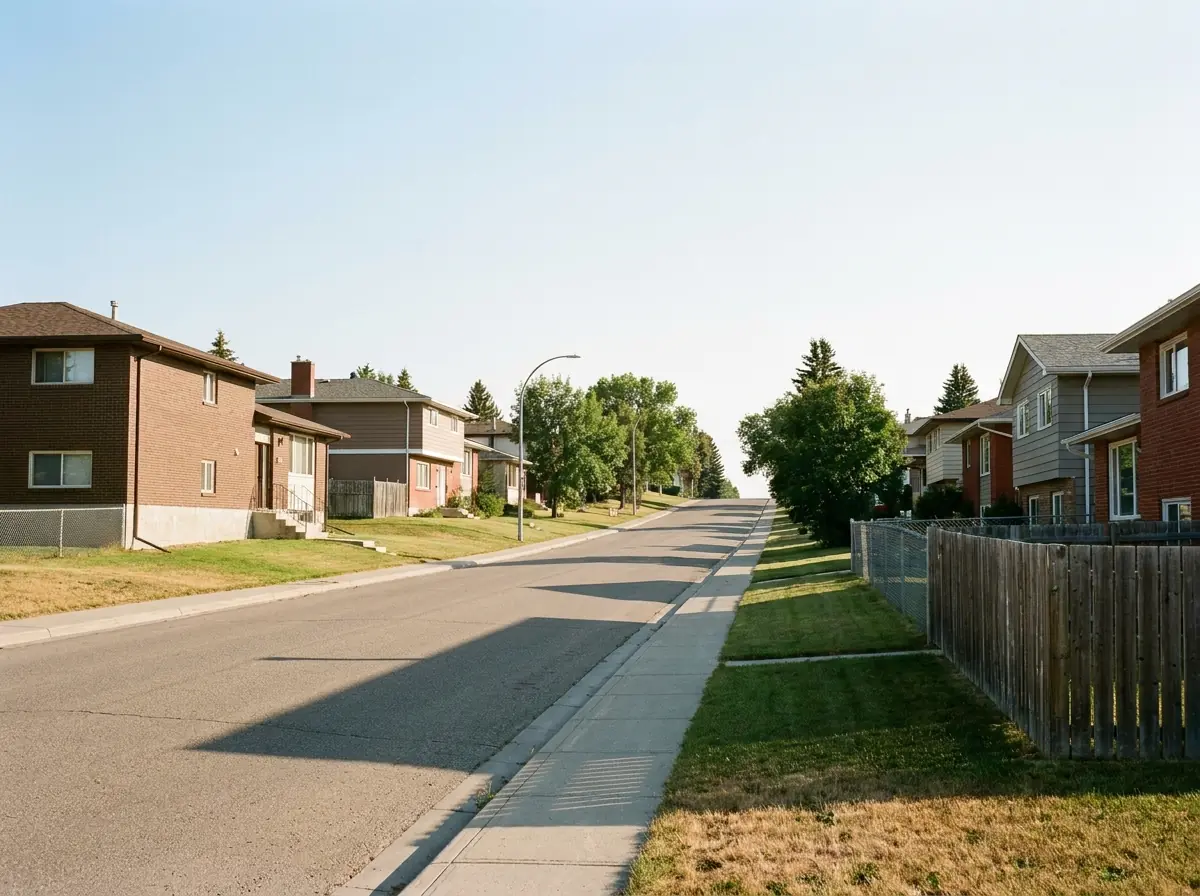

The middle band is where era reasoning actually breaks down, and it is worth being honest that it does. ABS is common in Canadian construction from roughly the 1970s onward. A house finished on one side of that changeover has jointed pipe; a house finished on the other side has long plastic runs; and the two houses can be on the same street, built four years apart, looking identical from the sidewalk. Across most of Calgary the build decade is a strong prediction. Through this band it is close to a coin toss, which is why we do not quote a northwest job from the year on the tax roll. The camera is not a formality here.

At the river end there is a second material to expect that the newer parts of the quadrant will never produce. It corrodes from the inside out. Scale builds on the pipe wall and narrows the bore until a line that was four inches is effectively passing two, and eventually the bottom of the pipe — where the flow sits — corrodes through entirely while the crown still looks fine. Cast iron usually runs under and immediately outside the building rather than the full distance to the main, so a northwest line can be iron for its first stretch and something else beyond it — which shows up clearly on camera as a change in wall texture partway along. Grade is the other river-end variable: this side of the city has real relief, and a run heading down off a terrace behaves differently from one that has to work across a flat lot.

The most common northwest call is not a description of a symptom, it is a question about which band the house is in. Owners here have usually read enough to know that the material matters and have correctly worked out that they cannot tell from the outside. That is the right instinct and the answer takes an hour with a camera. Sometimes the result is a clay run with intrusion at the joints and a real decision to make. Sometimes it is plastic, the blockage is soft, and the job ends with a cleaning.

The northern-edge caller is a different conversation entirely and mostly a shorter one. In communities that recent, a line that has stopped draining has almost certainly not worn out, and we will say so before we have had a chance to be paid for anything more than looking. What we do watch for at that end is grade and bedding, because a young line on a sloped lot can still have a low spot in it, and a low spot holds water regardless of how new the pipe is.
